Engineered Hardwood Sports Flooring Systems
Built for Performance Engineered for Stability · Designed for Creativity

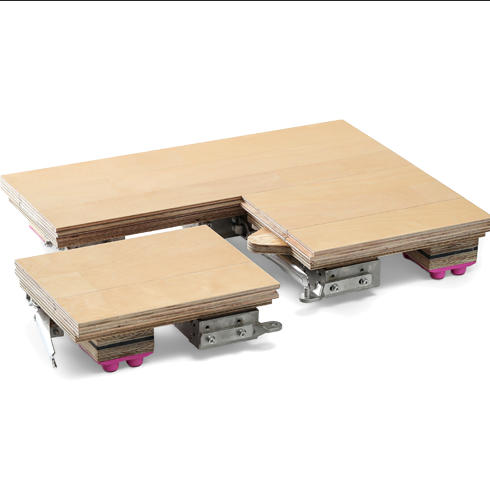

Portable Engineered Hardwood Flooring Systems
Product Specifications
| Model | LD-18P |
| Surface | Engineered Hardwood Panel（18*167*1215mm） Professional sports-grade finish |
| Substructure | LVL Parallel Double Keel System（35*70*1840mm） Waterproof · Anti-Rot · Moisture-Proof · Pest-Resistant |
| Bearing Plate | Moisture-resistant plywood (15mm) |
| Absorbing Pad | 68*53*18mm |
| System height | 86mm |

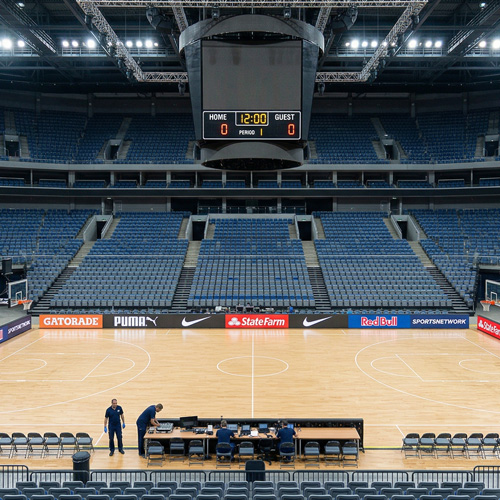

| Applications | Indoor Professional-grade courts |
| Service Life | 15-20 Years |
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: 'Segoe UI', Roboto, Arial, sans-serif;
}
.button-wrap {
display: flex;
gap: 24px;
margin-top: 20px;
}
.btn-blue {
background-color: #15347e;
color: #ffffff;
border: none;
padding: 10px 20px;
font-size: 12px;
font-weight: 600;
white-space: nowrap;
cursor: pointer;
}
.btn-orange {
background-color: #f29f27;
color: #ffffff;
border: none;
padding: 10px 20px;
font-size: 12px;
font-weight: 600;
white-space: nowrap;
cursor: pointer;
}
/* 移动端适配 */
@media (max-width: 900px) {
.button-wrap {
flex-direction: column;
}
.btn-blue, .btn-orange {
font-size: 26px;
padding: 16px 32px;
}
}
Portable Engineered Hardwood System
It is an innovative ground system that combines professional athletic performance with exceptional flexibility. Featuring a modular locking design, it enables rapid installation and disassembly without glue or nails, allowing venue functions to be switched within hours—truly realizing “one hall for multiple uses.” Its construction meets international sports standards, providing excellent shock absorption, vertical deformation control, and slip resistance, which effectively protect athletes’ joints and meet the requirements of professional training and official competitions. Moreover, it can be repeatedly assembled and reused without damaging the underlying surface, offering long-term cost-efficiency and floor protection.
* {
margin: 0;
padding: 0;
box-sizing: border-box;
font-family: 'Arial', sans-serif;
}
.imgtip-container {
position: relative;
width: 100%;
aspect-ratio: 16 / 9;
background: url("https://coposports.com/wp-content/uploads/2026/08/ScreenShot_2026-08-13_104625_913-1.jpg") center / cover no-repeat;
overflow: hidden;
margin: 0 auto;
}
.imgtip-group {
position: absolute;
transform: translate(-50%, -50%);
z-index: 5;
}
.imgtip-group[data-pos="1"] {
top: 55%;
left: 52%;
}
.imgtip-group[data-pos="2"] {
top: 78%;
left: 52%;
}
.imgtip-group[data-pos="3"] {
top: 53%;
left: 30%;
}
.imgtip-group[data-pos="4"] {
top: 74%;
left: 68%
}
.imgtip-group:hover {
z-index: 99 !important;
}
.imgtip-point {
width: 18px;
height: 18px;
border-radius: 50%;
background: #f5a41c;
cursor: pointer;
transition: box-shadow 0.2s;
position: relative;
z-index: 6;
}
.imgtip-point::before,
.imgtip-point::after {
content: "";
position: absolute;
inset: -2px;
border-radius: 50%;
background: #f5a41c;
opacity: 0;
transform: scale(1);
pointer-events: none;
box-shadow: 0 0 0 0 rgba(245, 164, 28, 0.35);
}
.imgtip-point::before {
animation: ripple-1 1.8s ease-out infinite;
animation-delay: 0s;
}
.imgtip-point::after {
animation: ripple-1 1.8s ease-out infinite;
animation-delay: 0.9s;
}
@keyframes ripple-1 {
0% {
transform: scale(1);
opacity: 0.55;
box-shadow: 0 0 0 0 rgba(245, 164, 28, 0.35);
}
40% {
opacity: 0.25;
}
100% {
transform: scale(2.8);
opacity: 0;
box-shadow: 0 0 0 12px rgba(245, 164, 28, 0);
}
}
.imgtip-circle-preview {
position: absolute;
width: 130px;
height: 130px;
border-radius: 50%;
overflow: hidden;
pointer-events: none;
opacity: 0;
transform: scale(0.85);
transition: opacity 0.25s ease, transform 0.25s ease;
background: #eaeef3;
z-index: 10;
border: 3px solid #ffffff;
box-shadow: 0 8px 20px rgba(0, 0, 0, 0.15);
}
.imgtip-circle-preview img {
width: 100%;
height: 100%;
object-fit: cover;
display: block;
}
.imgtip-text-desc {
position: absolute;
min-width: 220px;
max-width: 360px;
padding: 12px 18px;
background: rgba(255, 255, 255, 0.75);
backdrop-filter: blur(6px);
-webkit-backdrop-filter: blur(6px);
color: #1f2a3a;
border-radius: 10px;
font-size: 14px;
line-height: 1.6;
pointer-events: none;
opacity: 0;
transform: translateY(6px);
transition: opacity 0.25s ease, transform 0.25s ease;
z-index: 11;
border: 1px solid rgba(255, 255, 255, 0.8);
box-shadow: 0 8px 24px rgba(0, 0, 0, 0.08);
font-weight: 400;
letter-spacing: 0.01em;
width: 360px;
}
.imgtip-text-desc strong {
font-weight: 700;
display: block;
margin-bottom: 4px;
color: #0b1a2b;
font-size: 15px;
}
.imgtip-group:hover .imgtip-circle-preview {
opacity: 1;
transform: scale(1);
}
.imgtip-group:hover .imgtip-text-desc {
opacity: 1;
transform: translateY(0);
}
@media (max-width: 768px) {
.imgtip-circle-preview,
.imgtip-text-desc {
display: none;
}
.imgtip-point {
width: 24px;
height: 24px;
border-width: 2px;
}
}
@media (max-width: 600px) {
.imgtip-text-desc {
min-width: 140px;
max-width: 180px;
width: 180px;
font-size: 12px;
padding: 8px 14px;
}
.imgtip-circle-preview {
width: 100px;
height: 100px;
}
}
.imgtip-text-desc br {
display: none;
}
.imgtip-text-desc strong + br {
display: none;
}
(function() {
const container = document.getElementById('imgtipContainer');
if (!container) return;
const groups = document.querySelectorAll('.imgtip-group');
const PADDING = 14;
const GAP = 10;
const TEXT_GAP = 16;
const DESC_HEIGHT = 0;
function getDescWidth(desc) {
const clone = desc.cloneNode(true);
clone.style.visibility = 'hidden';
clone.style.position = 'absolute';
clone.style.width = 'auto';
clone.style.maxWidth = '360px';
clone.style.minWidth = '220px';
clone.style.padding = '12px 18px';
clone.style.fontSize = '14px';
document.body.appendChild(clone);
let w = clone.offsetWidth;
document.body.removeChild(clone);
return Math.min(Math.max(w, 220), 360);
}
function overlaps(a, b) {
return !(
a.right = b.right ||
a.bottom = b.bottom
);
}
function positionFloaters(group) {
const containerRect = container.getBoundingClientRect();
const groupRect = group.getBoundingClientRect();
const preview = group.querySelector('.imgtip-circle-preview');
const desc = group.querySelector('.imgtip-text-desc');
if (!preview || !desc) return;
const previewSize = preview.offsetWidth || 130;
const descWidth = getDescWidth(desc);
desc.style.width = descWidth + 'px';
const descHeight = desc.offsetHeight || 80;
const pointX =
groupRect.left -
containerRect.left +
groupRect.width / 2;
const pointY =
groupRect.top -
containerRect.top +
groupRect.height / 2;
const cW = containerRect.width;
const cH = containerRect.height;
const candidates = [];
// 右侧
if (
pointX +
GAP +
previewSize +
TEXT_GAP +
descWidth =
PADDING
&&
pointY +
previewSize / 2 =
PADDING
&&
pointY -
previewSize / 2 >=
PADDING
&&
pointY +
previewSize / 2 =
PADDING
&&
pointX -
previewSize / 2 >=
PADDING
&&
pointX +
previewSize / 2 <=
cW - PADDING
) {
candidates.push('up');
}
// 下侧
if (
pointY +
GAP +
previewSize +
TEXT_GAP +
descHeight =
PADDING
&&
pointX +
previewSize / 2 0
? candidates[0]
: 'right';
let preTop = 0;
let preLeft = 0;
let descTop = 0;
let descLeft = 0;
switch (direction) {
case 'right':
preTop =
-previewSize / 2;
preLeft =
GAP;
descTop =
preTop + 8;
descLeft =
preLeft +
previewSize +
TEXT_GAP;
break;
case 'left':
preTop =
-previewSize / 2;
preLeft =
-previewSize -
GAP;
descTop =
preTop + 8;
descLeft =
preLeft -
descWidth -
TEXT_GAP;
break;
case 'up':
preTop =
-previewSize -
GAP;
preLeft =
-previewSize / 2;
descTop =
preTop -
descHeight -
TEXT_GAP;
descLeft =
preLeft +
previewSize / 2 -
descWidth / 2;
break;
case 'down':
preTop =
GAP;
preLeft =
-previewSize / 2;
descTop =
preTop +
previewSize +
TEXT_GAP;
descLeft =
preLeft +
previewSize / 2 -
descWidth / 2;
break;
}
function clamp(value, min, max) {
return Math.min(
Math.max(value, min),
max
);
}
const preMinX =
PADDING -
pointX;
const preMaxX =
cW -
PADDING -
previewSize -
pointX;
const preMinY =
PADDING -
pointY;
const preMaxY =
cH -
PADDING -
previewSize -
pointY;
preLeft =
clamp(
preLeft,
preMinX,
preMaxX
);
preTop =
clamp(
preTop,
preMinY,
preMaxY
);
const descMinX =
PADDING -
pointX;
const descMaxX =
cW -
PADDING -
descWidth -
pointX;
const descMinY =
PADDING -
pointY;
const descMaxY =
cH -
PADDING -
descHeight -
pointY;
descLeft =
clamp(
descLeft,
descMinX,
descMaxX
);
descTop =
clamp(
descTop,
descMinY,
descMaxY
);
const preRect = {
left:
pointX +
preLeft,
right:
pointX +
preLeft +
previewSize,
top:
pointY +
preTop,
bottom:
pointY +
preTop +
previewSize
};
const descRect = {
left:
pointX +
descLeft,
right:
pointX +
descLeft +
descWidth,
top:
pointY +
descTop,
bottom:
pointY +
descTop +
descHeight
};
if (overlaps(preRect, descRect)) {
// 右侧
if (
preRect.right +
TEXT_GAP +
descWidth =
PADDING
) {
descLeft =
preRect.left -
TEXT_GAP -
descWidth -
pointX;
// 下侧
} else if (
preRect.bottom +
TEXT_GAP +
descHeight =
PADDING
) {
descTop =
preRect.top -
TEXT_GAP -
descHeight -
pointY;
}
descLeft =
clamp(
descLeft,
descMinX,
descMaxX
);
descTop =
clamp(
descTop,
descMinY,
descMaxY
);
}
preview.style.top =
preTop + 'px';
preview.style.left =
preLeft + 'px';
desc.style.top =
descTop + 'px';
desc.style.left =
descLeft + 'px';
}
function refreshAllTips() {
groups.forEach(function(group) {
positionFloaters(group);
});
}
setTimeout(
refreshAllTips,
80
);
setTimeout(
refreshAllTips,
300
);
let resizeTimer;
window.addEventListener(
'resize',
function() {
clearTimeout(resizeTimer);
resizeTimer =
setTimeout(
refreshAllTips,
150
);
}
);
window.addEventListener(
'load',
function() {
setTimeout(
refreshAllTips,
200
);
setTimeout(
refreshAllTips,
600
);
}
);
window.repositionImgTips =
refreshAllTips;
})();

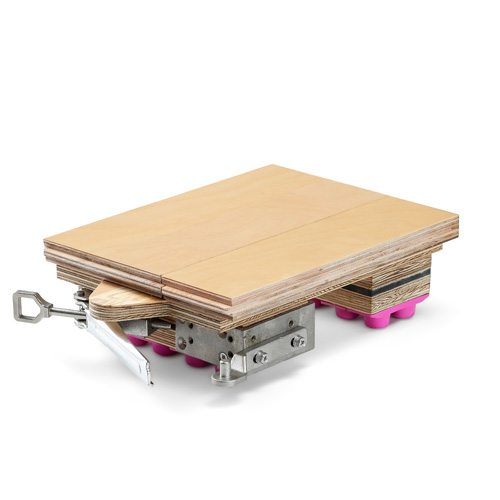

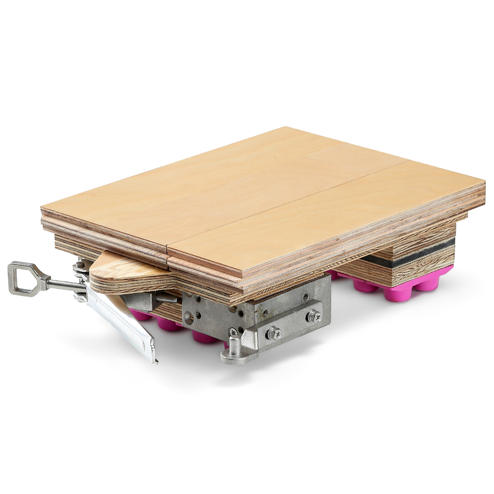

Locking clasp
Simple, fast, cost-effective snap-fitassembly, no tools needed. Insert tosecurely fasten components together.
LVL Elastic Dual Keel
Uniform structure, high longitudinal strength, and good dimensional stability.
Engineered Hardwood Panel
Resistant to deformation and cracking, low expansion coefficient, and its moisture resistance is 8 times greater than that of solid wood flooring.

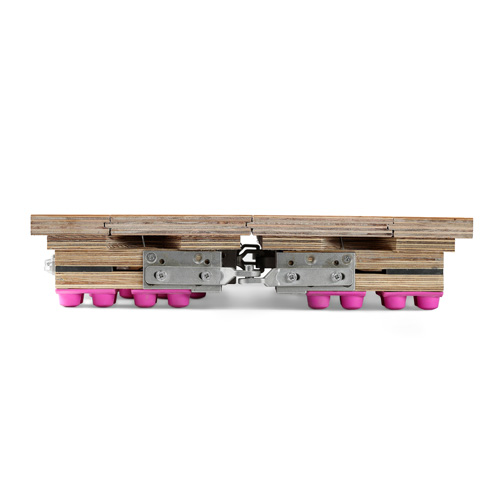

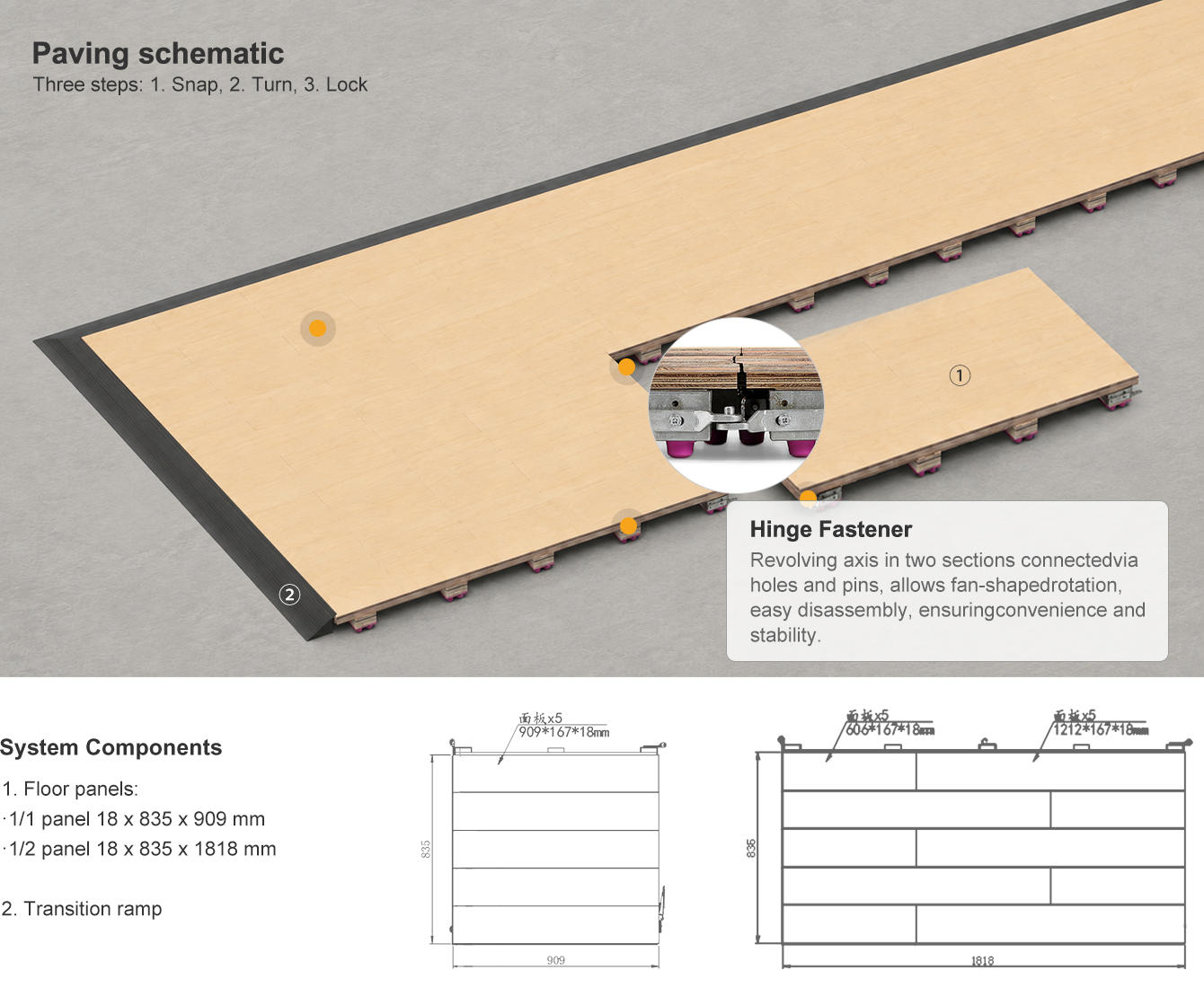

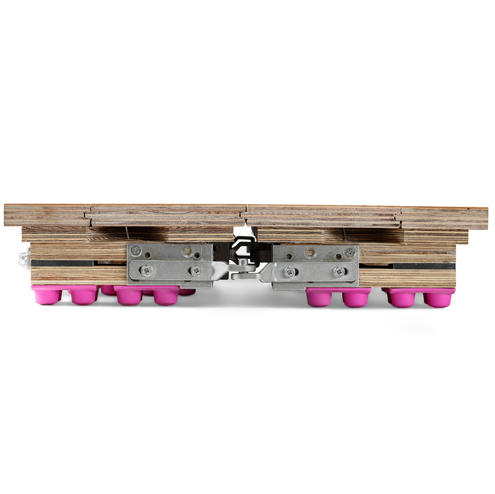

Hinge Fastener
Revolving axis in two sections connectedvia holes and pins, allows fan-shapedrotation, easy disassembly, ensuringconvenience and stability.
Performance indicators
Are Set To The FIBA Standard
| GENERAL REQUIREMENTS EN 14904 | FIBA APPROVAL PROGRAMME | TEST RESULTS | |
|---|---|---|---|
| FORCE REDUCTION | 40-75% | 50-75% | 57% |
| VERTICAL DEFORMATION | 1.5-5.0 mm | 2.3-5.0 mm | 2.7 mm |
| ROLLING LOAD | ≤ 0.5mm | ≤ 0.50 mm | 0.30mm |
| SLIP RESISTANCE | 80-100 | 80-110 | 95 |
| BALL REBOUND | ≥ 90% | ≥ 93% | 94% |

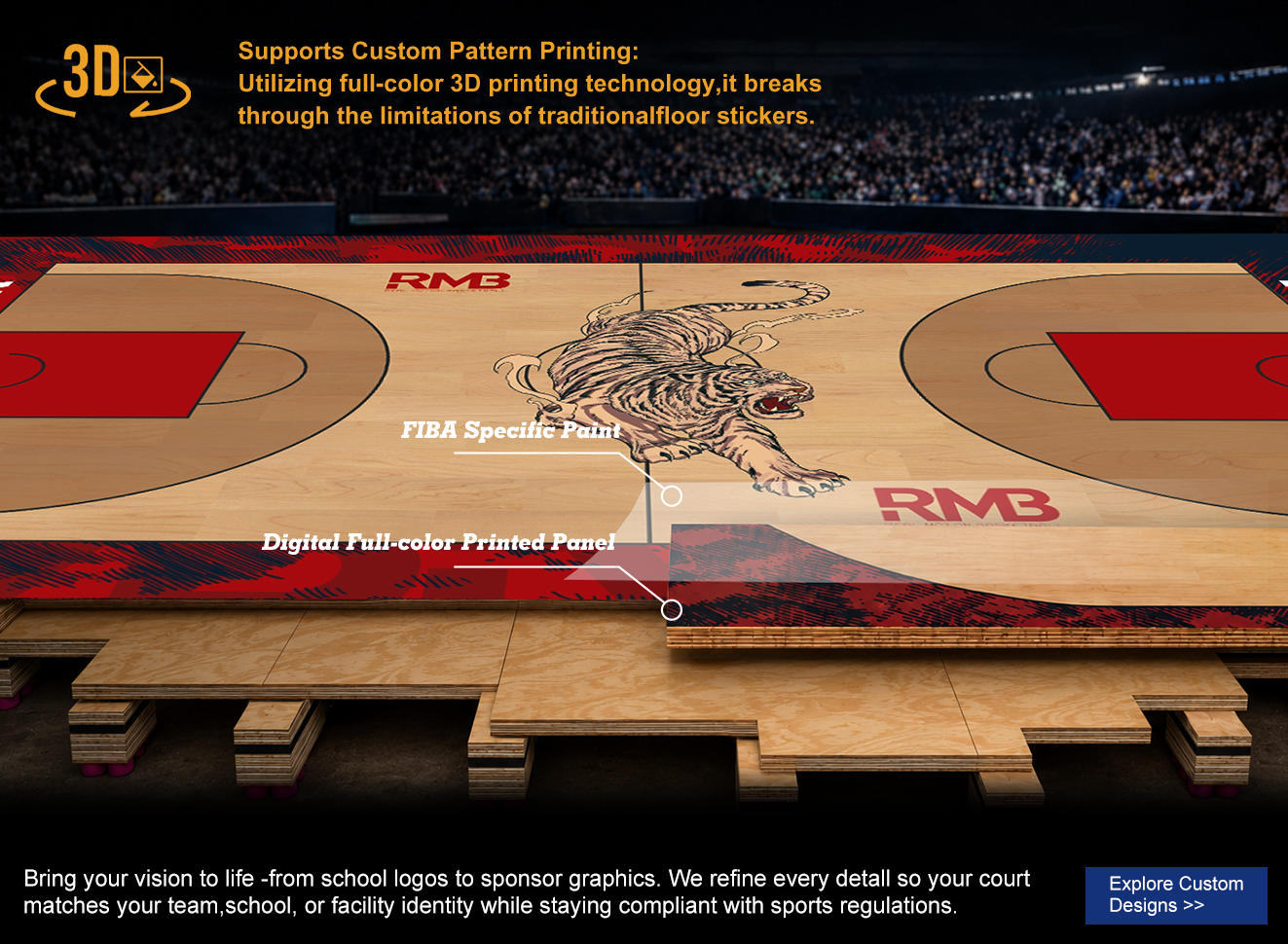

Digital court customization make your sports floor truly unique
• Custom court colors, stains and finishes
• Center court logos and full-court brand graphics (inlay or digital printing)
• Standard or custom game line markings for basketball, volleyball, badminton and multi-sport layouts
• Professional layout planning & CAD drawing support for architects, contractors and facility owners
Engineered Hardwood vs. Traditional Hardwood
| ENGINEERED HARDWOOD | TRADITIONAL HARDWOOD | |
|---|---|---|
| Moisture Resistance | High stability | Vulnerable |
| Dimensional Stability | Anti-deformation | Prone to warping |
| 3D Graphic Customization | Full-court 3D print | Limited/None |
| Pattern Deformation | Very low | High |
| Wear Resistance | Industrial-grade coating | Standard coating |
| Maintenance Cost | Low | Medium-High |
Quick Answers About Bio-Based Wood System Prime I
Common questions from contractors, distributors, sports flooring companies, and project buyers before choosing an indoor sports flooring system.
What type of projects is Bio-Based Wood System Prime I suitable for?
It is suitable for indoor basketball courts, volleyball courts, badminton courts, school gyms, training centers, clubs, and multi-purpose sports venues.
Is this system designed for indoor or outdoor use?
Prime I is mainly positioned for indoor sports court projects. If your project requires an outdoor court system, we can recommend a more suitable CopoSports outdoor flooring solution.
Can the court color, logo, and line markings be customized?
Yes. We support project-based customization including court colors, sports line markings, and logo placement. Final details are confirmed according to drawings before production.
What information is needed for a quotation?
Please share the sport type, court size or total area, project location, installation condition, and whether you need custom colors, logos, or line markings.
Can I request samples before placing an order?
Yes. Sample support is available for evaluating surface texture, color, structure, and material quality before larger project decisions.
Do you support international shipping and project documentation?
Yes. CopoSports supports international B2B shipping, export packaging, product documentation, technical references, and project communication for overseas buyers.
